U.S. Submarine SS347 Booklet of General Plans [U.S.S. Cubera]

$450.00

Declassified plans of the submarine U.S.S. Cubera.

1 in stock

U.S. Submarine SS347 Booklet of General Plans [U.S.S. Cubera]
U.S. Submarine SS347 Booklet of General Plans [U.S.S. Cubera] - Image 2
U.S. Submarine SS347 Booklet of General Plans [U.S.S. Cubera] - Image 3
U.S. Submarine SS347 Booklet of General Plans [U.S.S. Cubera] - Image 4
For most maps, high-resolution images are available for sale HERE. Please email me with any questions or inquiries.
Description

This rare collection of formerly confidential military plans outlines the building specifications for the U.S.S. Cubera, a Balao-class submarine first commissioned by the U.S. Navy in December 1945. The ship was constructed by the Electric Boat Company of Groton, Connecticut, and participated in several fleet exercises as part of Task Force Alpha in the late 1950s.

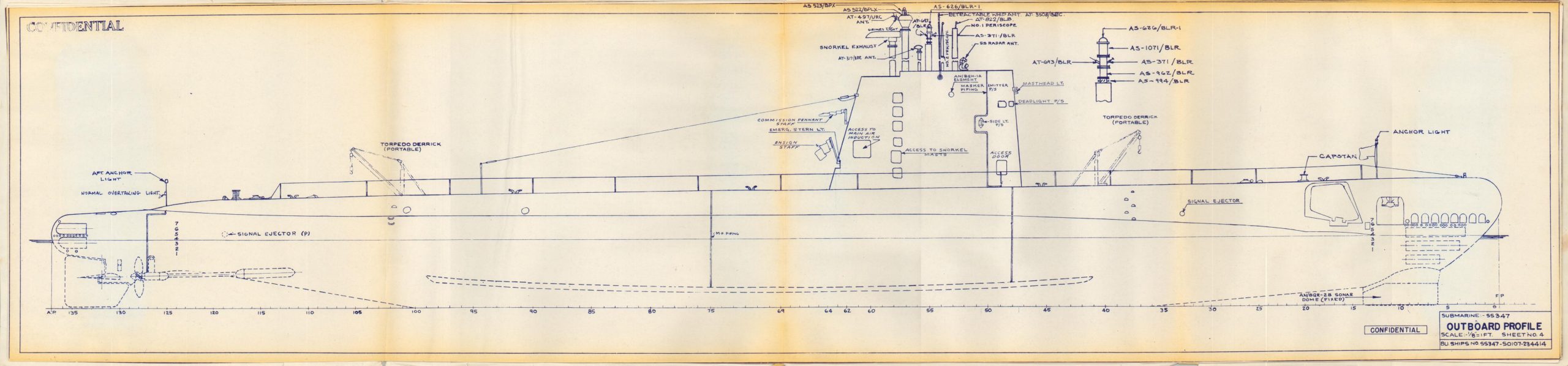

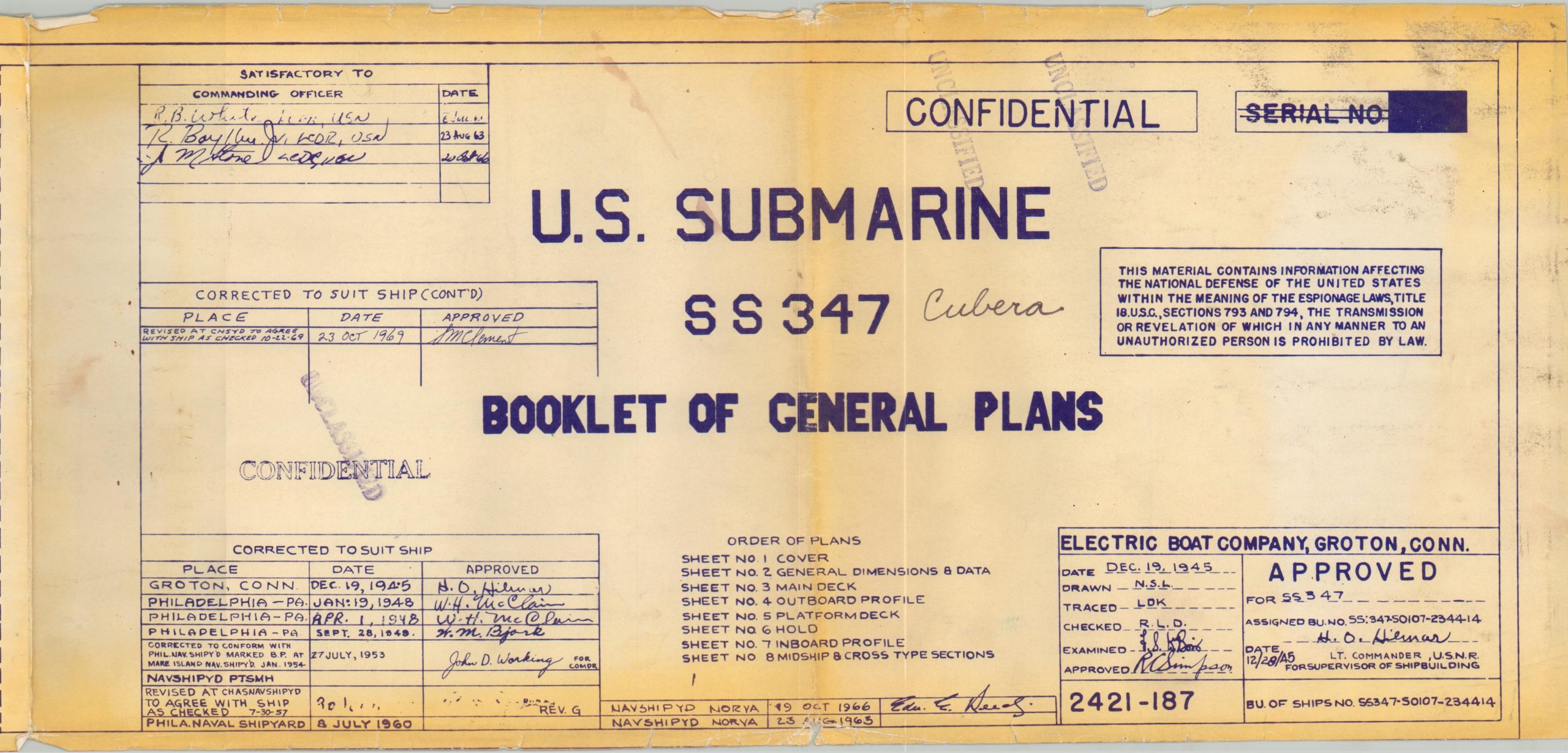

According to the front cover, the blueprints originated with the Cubera’s commissioning in December ’45. A nearby table of revisions indicates a latest date of October 1969, less than three years before the sub was decommissioned and sold to Venezuela. The contents provide detailed dimensional data, profile views, deck plans, and cross-sections of the entire ship.

Source: NavSource Online

Map Details

Publication Date: 1969

Author: Electric Boat Company/United States Navy

Sheet Width (in): 39.5

Sheet Height (in): 9

Condition: A-

Condition Description: Seven double-page sheets (folded once vertically) and the cover, bound with glue to a paper back, as issued. Complete, according to the table of contents on the front. Covers show moderate toning and there is moderate wear, numerous small tears, and a bit of paper loss along the edges. 'UNCLASSIFIED' rubbstamps throughout. Very good condition overall.
