Illinois Central Railroad Condensed Maps Springfield Division Clinton District Branch Jct. Ill. to Clinton Ill.

115 miles along the Illinois Central Railroad in 1950.

The immediate purpose of this volume is to expedite a field inspection to determine encroachment on the carrier’s right of way and outlying lands on floor space in buildings and to reflect the location of each encroachment by number on the appropriate map. – Table of contents.

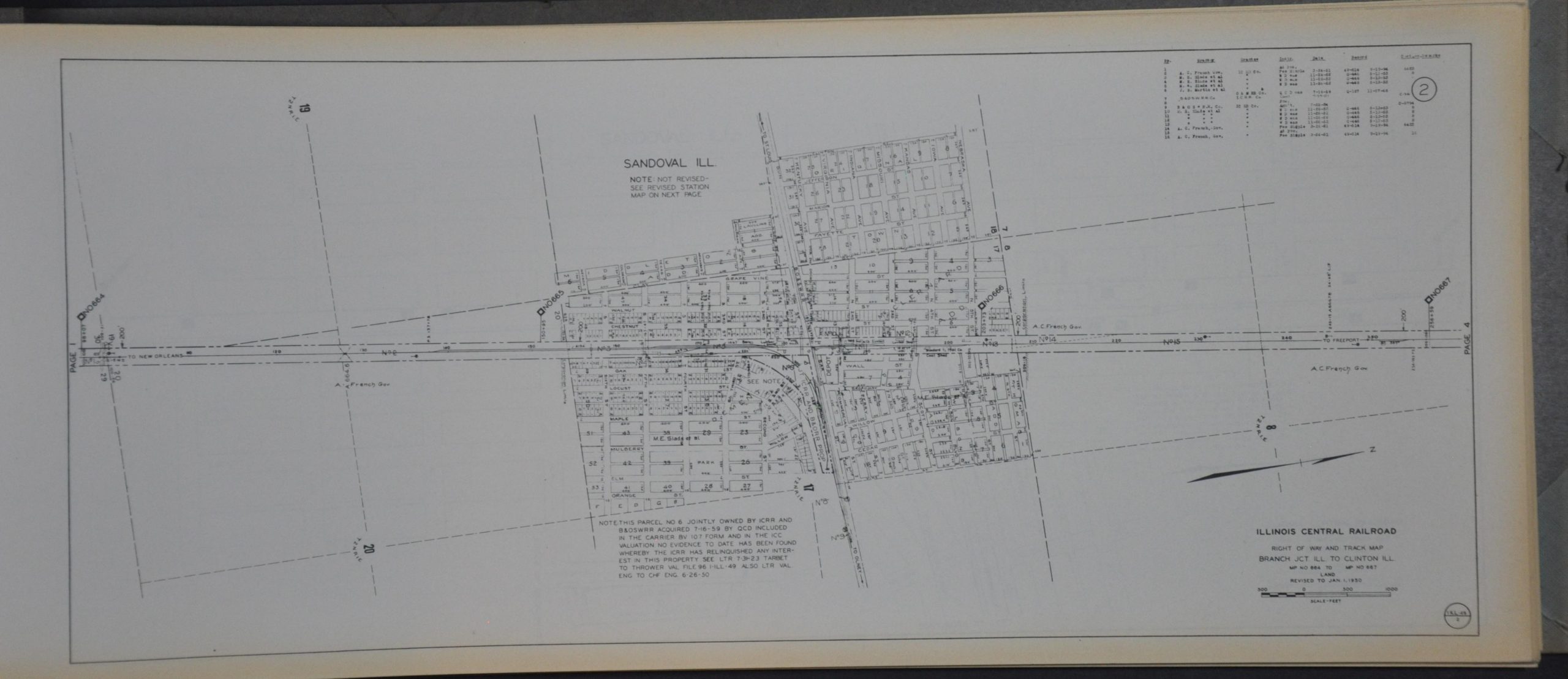

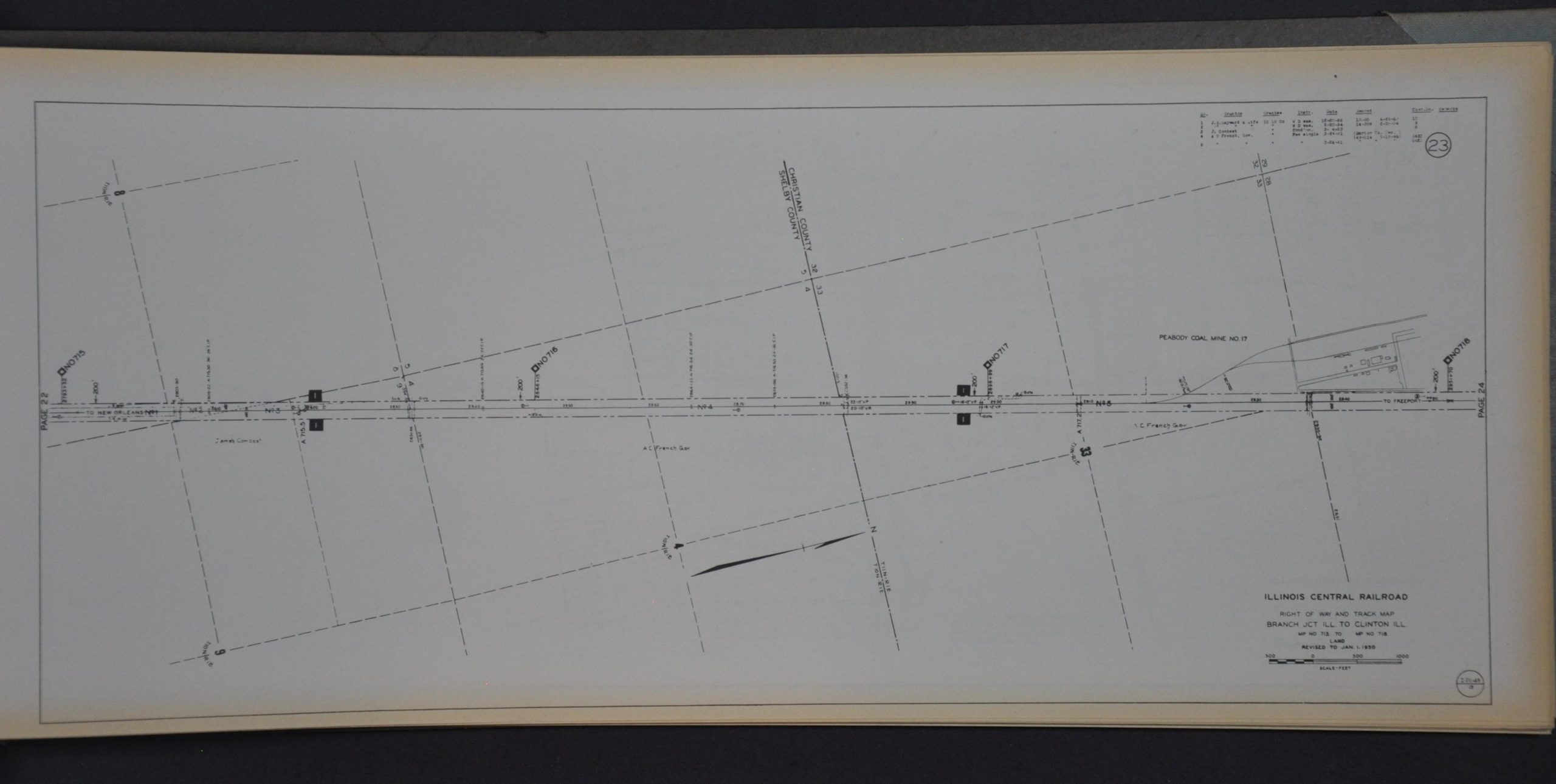

This detailed assortment of plans was compiled by engineers of the Illinois Central Railroad in July 1950. A series of sixty-two maps shows the company’s right of ways and station properties between Branch Junction (near Centralia) and Clinton, Illinois – about 115 miles of track in total. Both types of maps label major railroad infrastructure (switches, bridges, post markers, etc.) and are variously accompanied by tables of land changes, notes, and a compass rose.

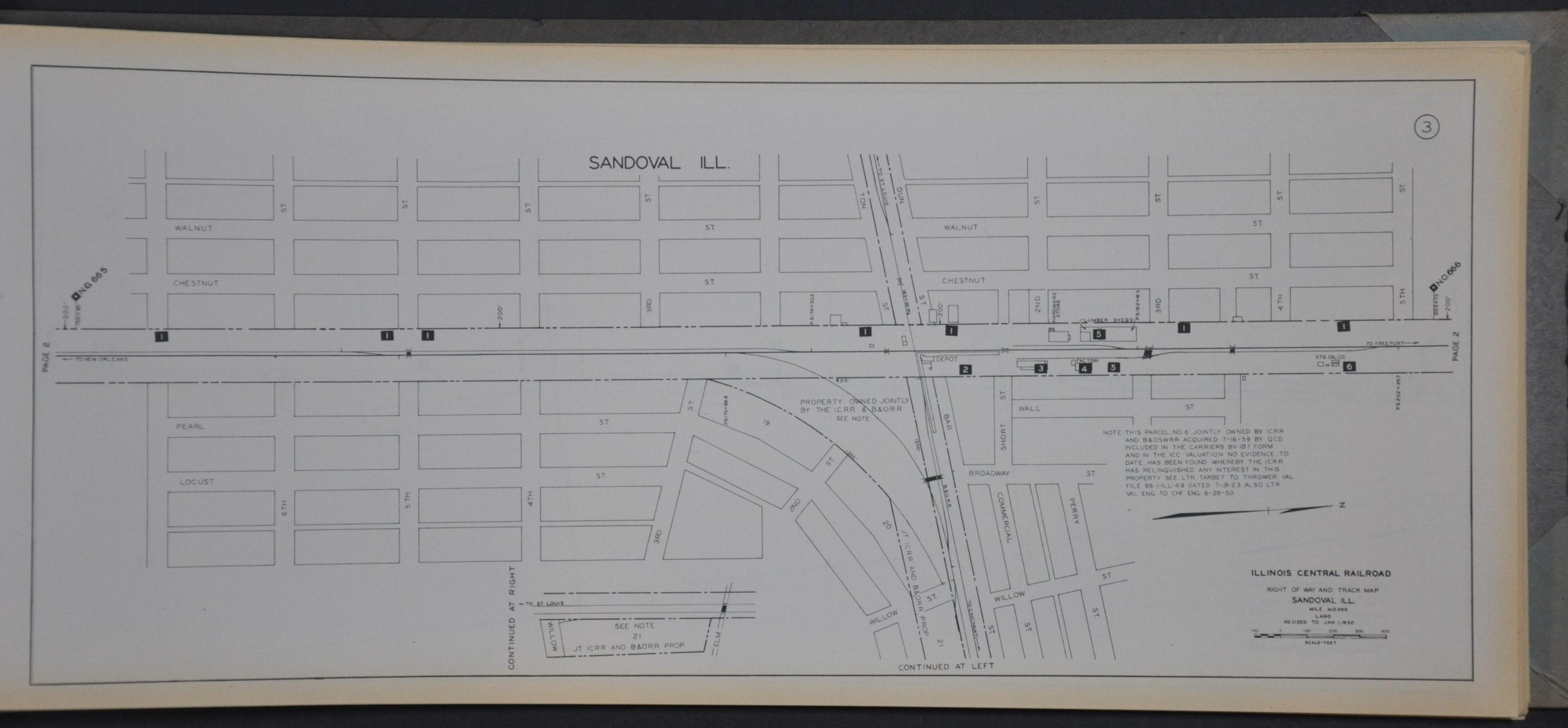

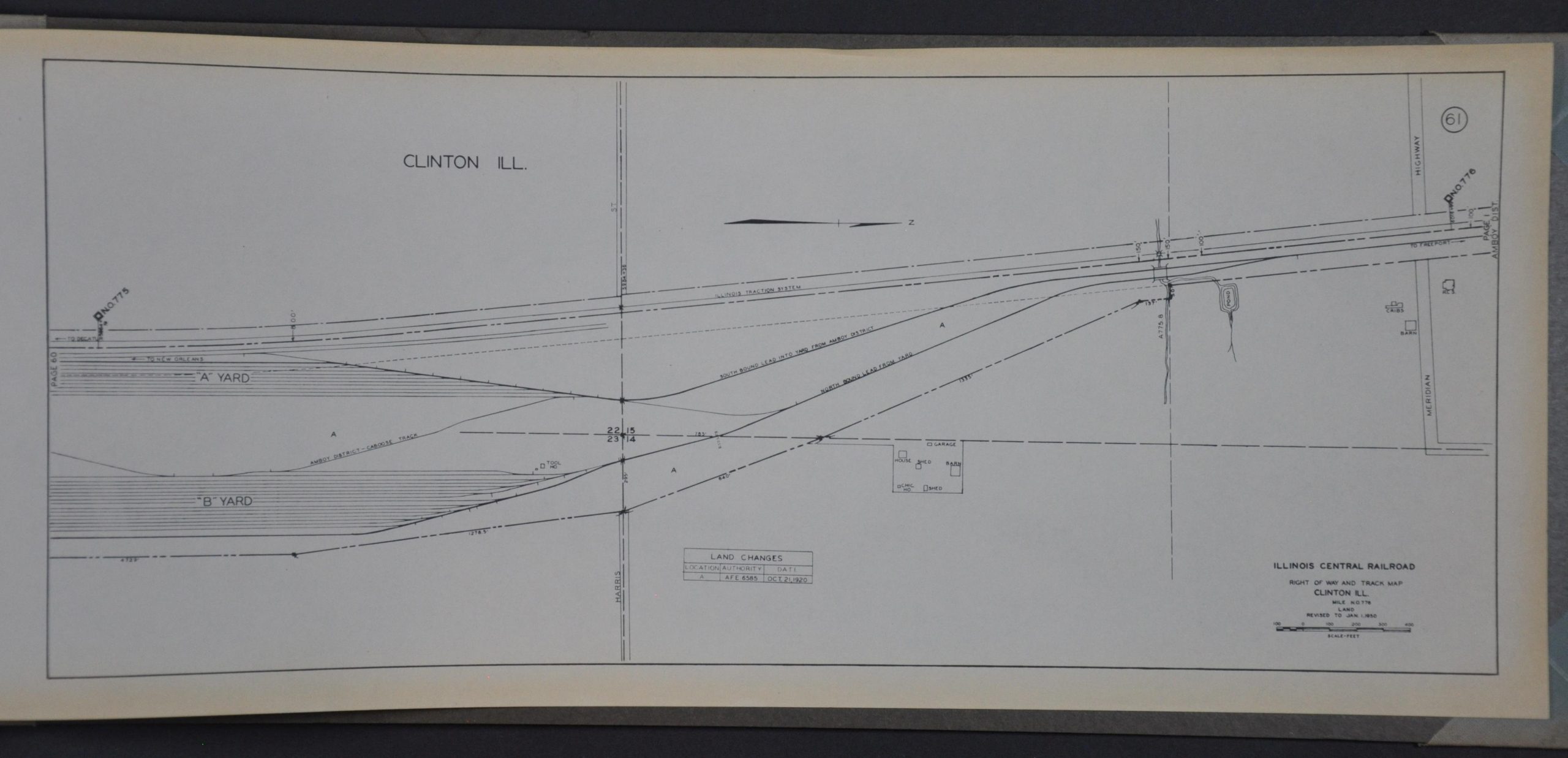

The right-of-way plans, presented at a scale of 1″ = 900′, name large landowners and include insets highlighting different track arrangements. Station maps, issued at a larger scale of 1″ = 300′, offer a detailed mid-century overview of portions of Clinton, Decatur, Macon, Maroa, Moweaqua, North Pana, Pana, Patoka, Ramsey, Sandoval, and Vandalia.
